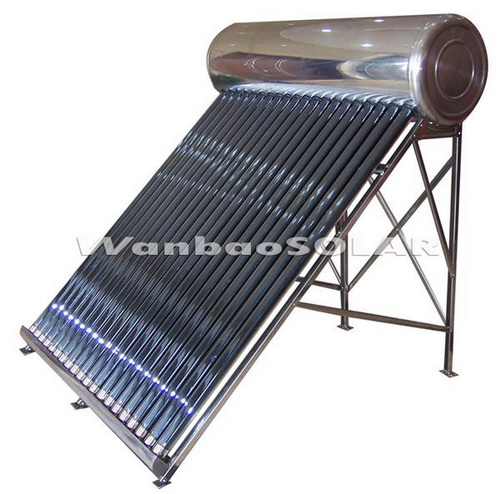

Integrative Non-Pressurized Solar Water Heater Stainless Steel Series

Big
Feedback



Specifications:
1) Vacuum tube: borosilicate glass 3.3, AL-N/AL or Al N/Al N-SS/Cu selective absorbing coating
2) Vacuum tube size: Φ47x1,500mm / Φ58x1,800mm
3) Vacuum tube qty: 10 / 12 / 15 / 18 / 20 / 21 / 24 / 25 / 30 / 36 pcs
4) Heat insulating layer: 50mm / 55mm / 60mm thickness polyurethane foam
5) Heat preservation: 72hrs
6) Inner tank: made of SUS304-2B food grade stainless steel
7) Thickness of inner tank: 0.35-0.5mm
8) Outer tank: stainless steel 304
9) Tank diameter: 410mm / 420mm / 460mm / 470mm / 480mm
10) Tank capacity: 80L-300L
11) Bracket: stainless steel
12) Thickness of bracket: 1.2-1.5mm
13) Hail resistance: 25mm
14) Optional accessories: assistant tank, electrical heater, controller
