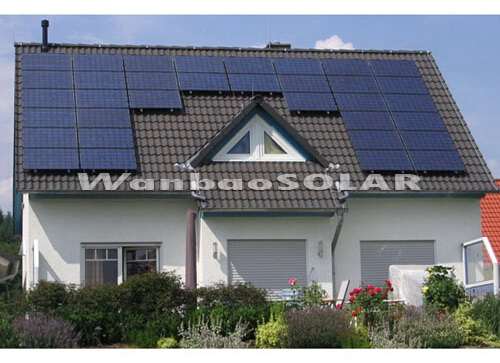

PV Grid-Connected Power System
PV grid-connected power system includes PV modules, grid-connected inverter, meter and power switchboard. The PV modules convert the solar energy to DC power, then the grid-connected inverter convert the DC power to sine wave AC power which has the same frequency and phase with the grid voltage. The AC power feed in the grid partly and the other power supply the local loads.
