U pipe collector, in operation, uses the absorption layer to transform solar light into heat energy. Then it transfers the heat to the working medium depending on the fin and U-shaped copper pipe in the manner of thermal conduction. The working medium is forced to circulate by the circulating pump to heat the water in the tank. Compared with a flat plate collector, it has lower heat loss, stronger adaptability and better performance of aging resistant membrane layer.

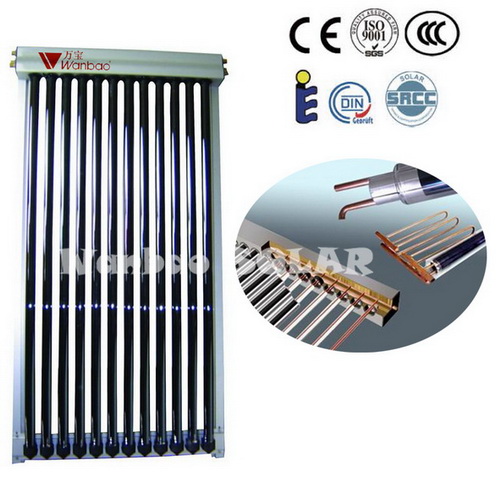

U pipe collector is composed of vacuum tube, manifold case, U pipe, protection support and frame.
|
No.
|
Model
|
Suited Tank Capacity
|
Vacuum Tube
|
Aperture Area
|
||
|
Diam
|
Length
|
Qty
|
||||
|
(L)
|
(mm)
|
(mm)
|
(PCS)
|
(sq.m.)
|
||
|
1
|
WB-S-U-58-12
|
100
|
58
|
1800
|
12
|
1.53
|
|
2
|
WB-S-U-58-15
|
150
|
15
|
1.92
|
||
|
3
|
WB-S-U-58-20
|
200
|
20
|
2.57
|
||
