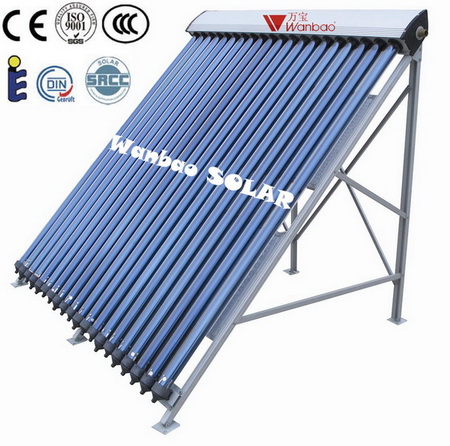

Working Principle:
The solar vacuum tube absorbs solar radiation and converts it into heat energy, which is transferred to heat pipe. The working medium inside of the heat pipe transfer the heat to manifold. Then the working medium inside of manifold take heat to water tank through the force of circulating pump. The working medium is anti-frozen and the whole machine's resistance is small.
Features:
Working under high pressure: can operate with water pressure up to 1.2Mpa. It can be installed anywhere with large flow rate for comfortable bathing. There is no water in the tubes, so there is no fouling, no breaking and it can safely work at very low temperature.
Heat pipe technology: heat pipe technology means that the collector can work at low temperature with features of quick heat transference and high efficiency.
Integrated with the buildings: that collectors separate from water tank makes solar heaters combine with buildings perfectly.
|
No.
|
Model
|
Suited Tank Capacity
|
Vacuum Tube
|
Aperture Area
|
||
|
Diam
|
Length
|
Qty
|
||||
|
(L)
|
(mm)
|
(mm)
|
(PCS)
|
(sq.m.)
|
||
|
1
|
WB-S-H-58-12
|
100
|
58
|
1800
|
12
|
1.53
|
|
2
|
WB-S-H-58-15
|
150
|
15
|
1.92
|
||
|
3
|
WB-S-H-58-18
|
150
|
18
|
2.3
|
||
|
4
|
WB-S-H-58-20
|
200
|
20
|
2.57
|
||
|
5
|
WB-S-H-58-24
|
200/250
|
24
|
3.06
|
||
|
6
|
WB-S-H-58-30
|
250/300
|
30
|
3.85
|
||
