Separate Pressurized Solar Water Heater

Big
Feedback

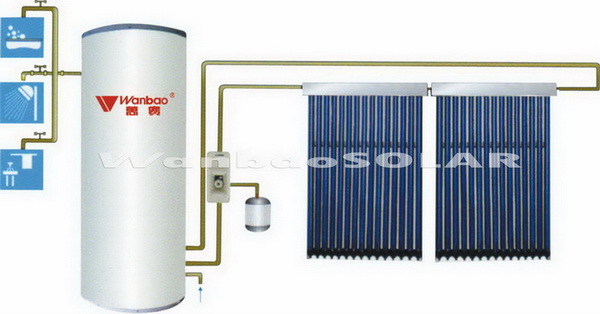

The separate pressurized solar water heater is composed of solar collector, water tank, controller, working station and installation parts.

Features:
1) Module design, arbitrary combination, harmony with the building perfectly. The solar collector and water tank are separate, the tank can be put anywhere in the house and the collector can be put on both tilted roof and flat roof
2) Intelligent control and automatic operation
3) Anti-freeze: no water inside the tubes when it works
4) Multifunction: bath, washing, domestic heating
5) Workable at anytime and enjoyable

Specifications:
1) Material of inner tank: SUS304-2B food grade stainless steel
2) Material of outer tank: color armor plate
3) Bracket material: aluminum alloy
4) Vacuum tube: borosilicate glass 3.3, Al N/Al N-SS/Cu selective absorbing coating
5) Vacuum tube size: Φ58×1800mm
6) Capacity: 100L-1000L
