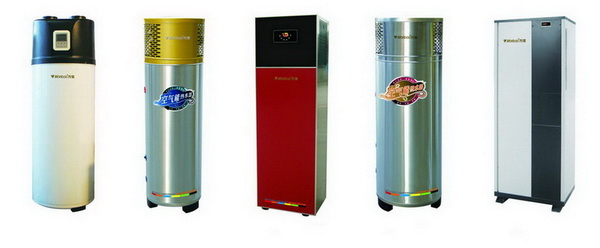

This series of domestic monobloc heat pump adopts high efficiency heat exchanger and built-in water pump inside the heat pump, which ensures not only high efficient performance of the system but also easy installation.
Features
1. Famous brand compressor
2. All-in-one heat pump and water tank
3. Automatic defrosting
4. Intelligent control
5. Safe, reliable, stable running
6. Long working life
7. Low noise & vibration
8. Easy to install & operate
|
Model
|
WB-HP-150A
|
WB-HP-200A
|
WB-HP-260A
|
|
Voltage
|
220V
|
220V
|
220V
|
|
Tank capacity
|
150L
|
200L
|
260L
|
|
Hot Water Produced Volume
|
98 L/h
|
98 L/h
|
98 L/h
|
|
Maximal input power
|
1250W
|
1250W
|
1250W
|
|
Maximal input current
|
5.7A
|
5.7A
|
5.7A
|
|
Electric shock rating
|
I
|
I
|
I
|
|
Noise
|
≤43 dB(A)
|
≤43 dB(A)
|
≤43 dB(A)
|
|
Pipe size
|
3/4"
|
3/4"
|
3/4"
|
|
Dimension
|
640*640*1725mm
|
670*670*1720mm
|
665*665*2000mm
|
|
Net weight
|
55kg
|
70.5kg
|
76.8kg
|
|
Gross weight
|
67kg
|
75.2kg
|
83.5kg
|
|
Refrigerant
|
R417A
|
R417A
|
R417A
|
